Products:

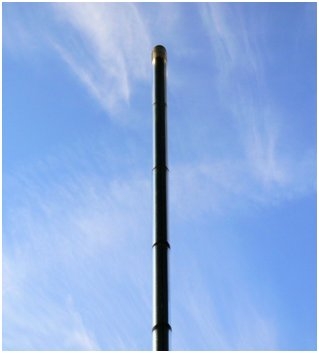

SolarConvect® Solach solar chimneys for use on top of houses and buildings for getting a maximum output of the availabe sun power for the ventilation of an object. The products can be combined with several standard existing diameter chimneys. In many cases the use of electricity consuming ventilators and air conditioning systems can be completely avoided.

Each solar chimney consists of:

1. A special cylindrical glass outside, receiving and transmitting the solar energy very afficiently;
2. Gas spacers for the transmission of the energy inside;
3. Metal cylinders transmitting the heat to the upwards flowing gas inside. (Several aspects of the concept have been patented).

Advantages:

1. The construction gives a very efficient transmission of solar energy and stimulates the upwards air conduction. It avoids the usage of electrical energy and gives the famous "chimney" functioning, even without sunshine, "pulling" the air from underneath.
2. Since the connection at he chimney base is standard, it can be hooked-up easilyto the SolarConvect® Solaflu ventilation modules (see hereunder), but even to exisiting ventilation system to enforce its working.
3. No mechanics means very little maintenance.
4. No noise will be produced.
5. The system can be used both for ventilation purposes for buildings and houses, but equally for drying systems for vegetables, fish, stones, powders, etc.

Models:

(The first part of the code represents the diameter; the second the length, both in mm):

• Solach 200-2000
• Solach 200-3000
• ChimneyRoof 200: an "open cover" on top of the chimney to make sure, that no rains enters into the chimney.
• ChimneySafe 200: consists of 3 cables and attachment parts to a ground or roof support in order to insure the stability of the chimney, even during rough weather circumstances.

SolarConvect® Solaflu solar ventilation modules, for placing onto roofs and integrating easily into architectural designs. Each module can be "clicked" onto a next one, so guarantees the freedom to make a shape fitting into the expected total design, respecting the total energy need for ventilation.

Advantages:

1. The construction gives a very efficient transmission of solar energy and stimulates the upwards air conduction. It avoids the usage of electrical energy.

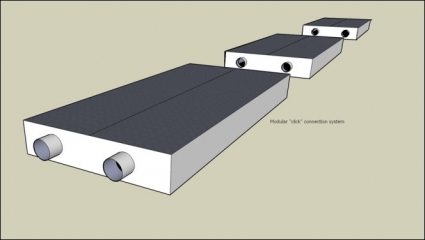

2. The system is modular: connections between two or more modules are easily done with simple O-ring connections. A designer/architect is free to shape the roof in function of the total ventilation energy need.
3. Since the connection is a standard one, it can be hooked-up easily to the SolarConvect® Solach solar chimney (see before), but even to existing ventilation systems to enforce tis working.
4. The system can be used both for ventilation puposes for buildings and houses, but equally for drying systems for vegetables, fish, stones, powders, etc.
5. No mechanics means very little maintenance.
6. No noise is produced.

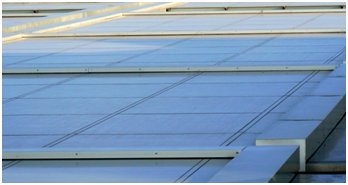

7. Placed on a roof, a collection of SolarConvect® Solach panels looks esthetically responsible.  * The panels can be delivered in either the colours black; dark blue or dark green in function of the major colours of the building.  * Both in the horizontal and vertical directions, the spaces between the panels are standard, so the total looks like "roof tiles".

  Models (The letter indicates the panel colour: N=black; G=dark green and B=dark blue. The digits indicate the outside dimensions in mm):

• Solaflu N1200-2400
• Solaflu G1200-2400
• Solaflu B1200-2400
